What are Mixtures?

Mixtures will always require a form separation. The reason is because a mixture must contain more than one substance.

Please read more on Mixtures and their Characteristics here.

Take for instance, water (H2O) is a pure substance; but when we add common salt (NaCl) to it, the water no longer becomes pure (since it has been mixed with another substance).

Together, the water and salt are considered to be mixtures and thus may be separated in order to regain its constituents, that is, the salt and water respectively.

A mixture always contain two or more substances in any proportion.

Please read more on Elements and their Characteristics here.

Based on the uniformity of the mixture, we could classify a mixture as either homogenous or heterogeneous.

  • The composition of substances in a homogenous mixture is uniform all through. For instance, the mixture of salt and water will be homogenous.

The liquid that dissolves the solid is known as the solvent. (Water in the above instance).

The solid that is dissolved by the solvent is known as the solute. (Salt in the above instance).



Separation of Mixtures:

In chemistry, students are expected to work with substances like salts, acid and bases.

Recall that substances may be classified in two ways. These are:

  1. Physical Substances: They are classified into solids, liquids and gases.
    Please read on Solids, Liquids and Gases with their Characteristics here.
  2. Chemical Substances: They are classified into elements, compounds and mixtures.

Note: It is important to state that the technique for separating one mixture will vary with another. This is due to the different nature of components present in the mixture, together with their physical properties like boiling point, melting point and solubility among others.

Please read on the Physical Properties of Metals here.



Separation Techniques

Below are types of separation techniques (for separating mixtures):

(1) Filtration

Filtration is used as a method to separate an insoluble solid from a liquid. For instance, a mixture of:

  • Sand and Water
  • Lead tetraoxosulphate(XI) (PbSO4) and Water (H2O)
  • A solution of Calcium trioxocarbonate(IV) (CaCO3) and Sodium Chloride (NaCl)
  • Pebbles and Water

Below is an image showing the Filtration process:

Filtration - Len Academy

The material utilized in carrying out the process of filtration could be a filter paper, sieve with microscopic pores or even a cotton material.

The liquid that is collected into the filtration flask is known as the filtrate while the solid that remains on the filter paper is called the residue.

Note: Filtration is a commonly used process in the purification of a town’s water supply. In this case, filter beds are used.

You can read on Compounds in Chemistry and their Characteristics here.



(2) Sedimentation and Decantation

Decantation is a process used for the separation of an insoluble solid from a liquid; and the insoluble solid must sediment (that is; settle at the bottom of the container), leaving a clear liquid above.

An instance where decantation can be used is in the separation of water and sand. Sand is insoluble in water and will sediment at the bottom, leaving a clear liquid above.

Sedimentation is a term used when an insoluble solid settle at the bottom of a container.

The clear liquid above the sediment is referred to as the supernatant.

Sedimentation and Decantation - Len Academy

During the process of decantation, we need to carefully pour off or decant the top/upper clear liquid (supernatant) leaving behind the insoluble solid (sediment) in the container.

Note: Although decantation may be quite similar to filtration with regards to what is separated, the fact remains that decantation is less effective since it cannot ensure complete separation of the insoluble solid from the liquid.



(3) Separating Funnel

A separating funnel is used to separate two immiscible liquid, for instance, water and oil, kerosene and water, etc.

Note: The two immiscible liquids that are to be separated will usually have different densities or weights; and as a result, one will rise above the other.

Please read more on Density and Specific Gravity here.

With regards to water and oil, water has a higher density of 1.003g/m3 and will remain at the bottom (sinks) as the oil floats above it (since it has a lesser density of 0.811g/m3).

Immiscible or Non Miscible liquids are liquids that do not dissolve in each other.

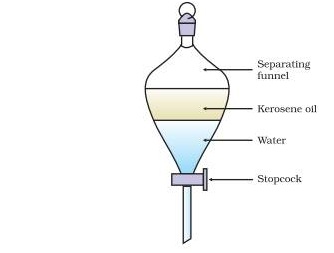

Below is an image of a Separating Funnel:

Separating Funnel - Len Academy

When the mixture of the two immiscible liquid are put in the separating funnel, the tap/stopcock is opened and the liquid with the higher density is first collected (water in our case) followed by that with the lower density (oil).

A separating funnel is also called a separatory funnel.



(4) Evaporation

Evaporation is used to separate the components of a soluble solid in a liquid and the solid must not be decomposed on heating.

A mixture of sodium chloride in water can be separated through evaporation.

Evaporation Separating Technique - Len Academy

The basic apparatus required to carry out evaporation are:

  • Bunsen burner
  • Tripod stand
  • Evaporating dish

After evaporation, the liquid will be lost to the atmosphere while the solid (salt in our instance) remains in the evaporating dish.

Please read on Layers and Composition of the Atmosphere here.

The solid that remains in the evaporating dish is known as residue

Please read on the Separation of Mixtures - Part 2 here

Please read on the Separation of Mixtures - Part 3 here
